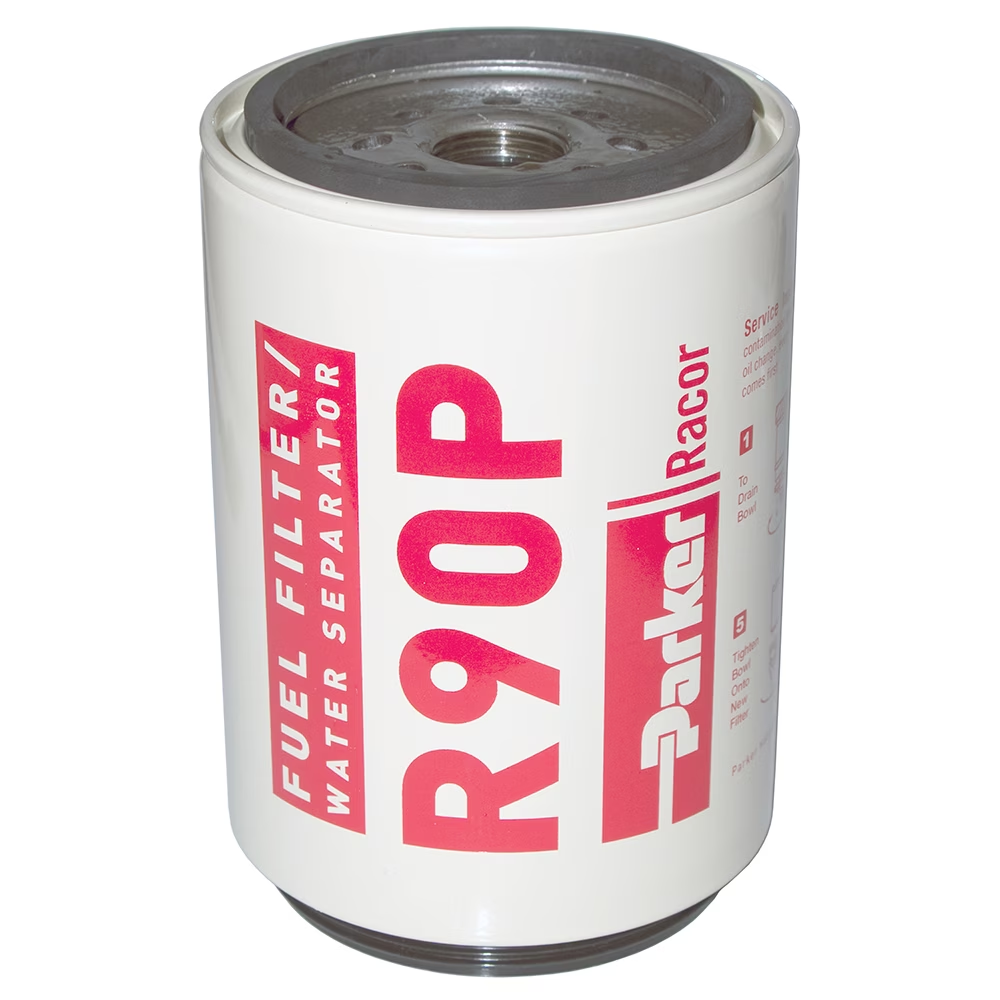

30 Micron Aquabloc® Spin-on Element for 790R, 690R, 490R, 390RC Series
Part#: R90P
30 Micron Aquabloc® Spin-on Element for 790R, 690R, 490R, 390RC Series
Technical Specifications
Diesel Spin-On Series Replacement Cartridges
Location:
North America and EMEA regions
Externaldiameter:
4.4" (112 mm)
Product Series:
Chai Spin-on FF/WS
Compliance withspecifications:
NO
Filter Element Type:
30 Micron Aquablock® Spin-on
Altitude:
6.1"(155 mm)
Brand:
Racor
Flow direction:
Outside In
Thread Size: 1"_14"
1"-14
Related parts:
Clear Bowl: RK21113-01
Connection type:
3.75" Male Bottom Threads
Product Series:
790R, 690R, 490R, 390RC
Micron Rated Value:
3098%um
Product Description:
Note 1: Description is accurate at the time of release. Images are for reference only. For manuals and other information, please refer to the Product Support tab.
Racor Spin-On Series Replacement Cartridges:
Racor replacement spin-on cartridges come in different lengths and diameters to accommodate various flow rates. The mesh is color-coded: "light brown" indicates 5 microns, "light blue" indicates 10 microns, and "dark red" indicates 30 microns. The smaller the micron rating, the finer the filtration. Without additional downstream filtration, consider using the 5-micron rating. The 10- and 30-micron filters are suitable for pre-filtration, protecting downstream or engine-mounted filters. Ultimately, the preferred micron rating will be determined by fuel quality, operating environment, and maintenance schedule.
Fuel contamination in the form of dirt, sludge, or water will always enter your fuel system. Every time you trigger the fuel dispenser, you pose a threat to your engine’s lifespan. No matter how carefully fuel is handled or stored, dirt, rust, gums, algae, and water will always enter the fuel. Racor fuel filters/water separators using Aquabloc™ media remove harmful water and solids, allowing engines to run at higher power and efficiency. Installing a Racor head and spin-on fuel filter/water separator protects the longevity of your engine.
How It Works:
Racor spin-on series filters using Aquabloc™ media effectively remove dirt and water from diesel and gasoline fuels. The Aquabloc™ media is pleated and corrugated, designed to provide excellent water separation and extended service life. Fuel flows downward through the vertical pleats of the media, causing larger water droplets and contaminants to drop directly into the collection bowl. Smaller water droplets accumulate on the treated media surface until they are large enough to drip into the collection bowl. Larger contaminants remain on the media surface, while smaller particles are trapped deeper within the media layers. This results in drier, cleaner fuel for your marine engine.
Features:
These fuel filters/water separators are designed for high-performance applications, providing cleaner, water-free fuel for improved marine engine performance. The filter housing features a durable powder-coat finish applied electrostatically for excellent corrosion resistance. The spin-on design is easy to maintain, and the reusable transparent engineering plastic or metal collection bowl comes with either a self-venting drain or metal plug to remove harmful sludge and water.
• High contaminant capacity replacement filters for long service life
• Corrosion-resistant coating and construction
• Aquabloc™ media standard
• Gaskets and O-rings designed for diesel or gasoline use
• Global Parker support and distribution network ensures availability worldwide
• Manufactured within the ISOTS16949 quality system and complies with ISO14001 environmental requirements
• Note: Transparent collection bowls in gasoline systems are routine inspection items: check frequently for damage, deformation, and discoloration, and replace if necessary
How to Select the Correct Cartridge:
1. Identify the Racor series that matches your filter.
2. Choose the micron rating of Aquabloc™ media. For primary applications, 10- and 30-micron cartridges are recommended; for secondary and final filtration, 5-micron is suggested.
3. Alternatively, selection can be made based on height and diameter in any order.
Applications:
• Generators
• On-road or off-road vehicles
• Trucks and buses
• Construction
• Industrial
• Engine fuel filtration applications
